A brown Fishman AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2 pedal with Level and Input Trim knobs, five EQ sliders (Low Cut, Bass, Middle, Treble, Brilliance), and a silver footswitch. The Acoustic Shoppe logo is visible in the corner.
Close-up of the Fishman AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2, featuring five black sliders labeled Low Cut, Bass, Middle, Treble, and Brilliance on a brown background with white text—perfect as an acoustic preamp.

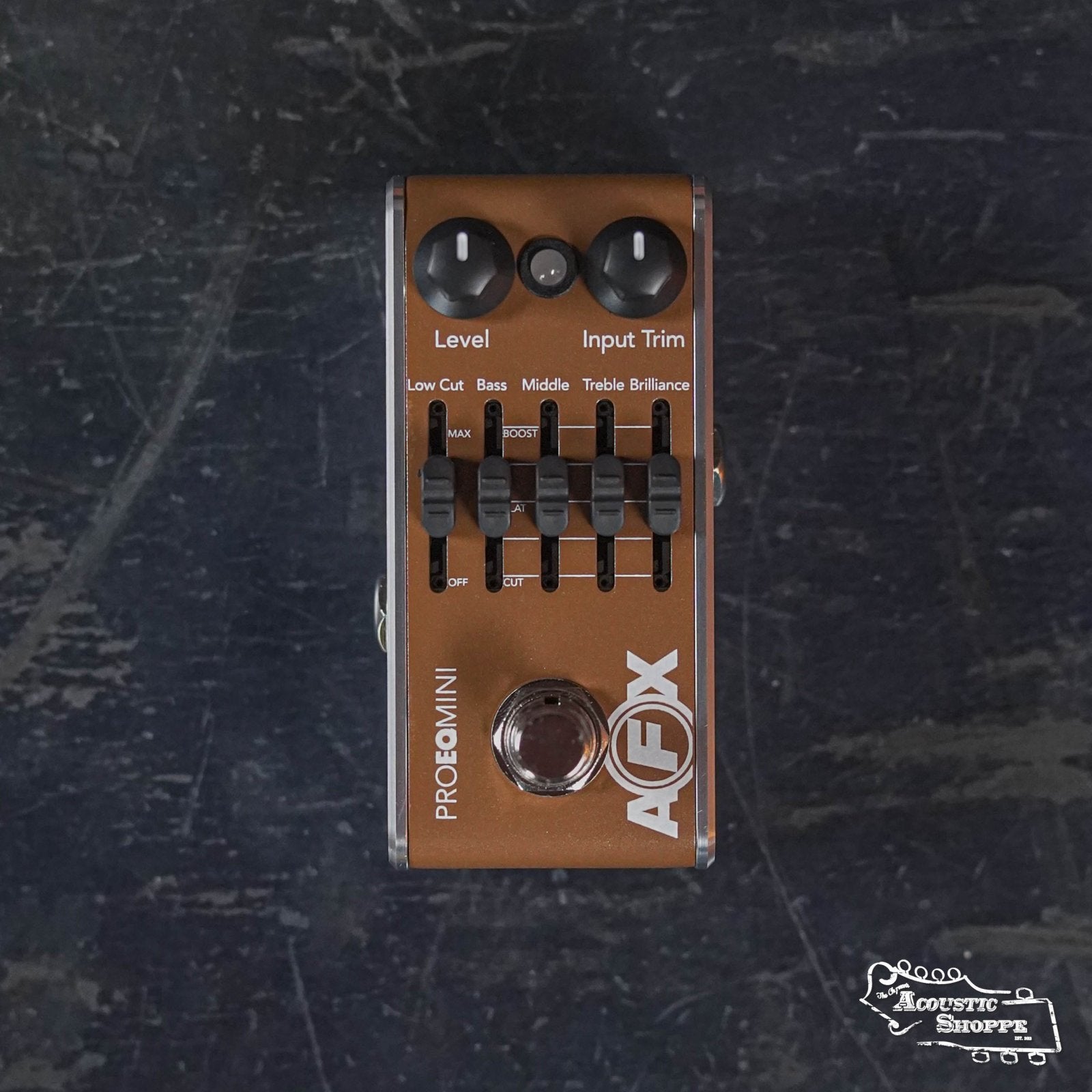

A Fishman AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2 pedal with five sliders and two knobs lies on a dark textured surface, offering level, input trim, EQ band controls, and a low cut switch.

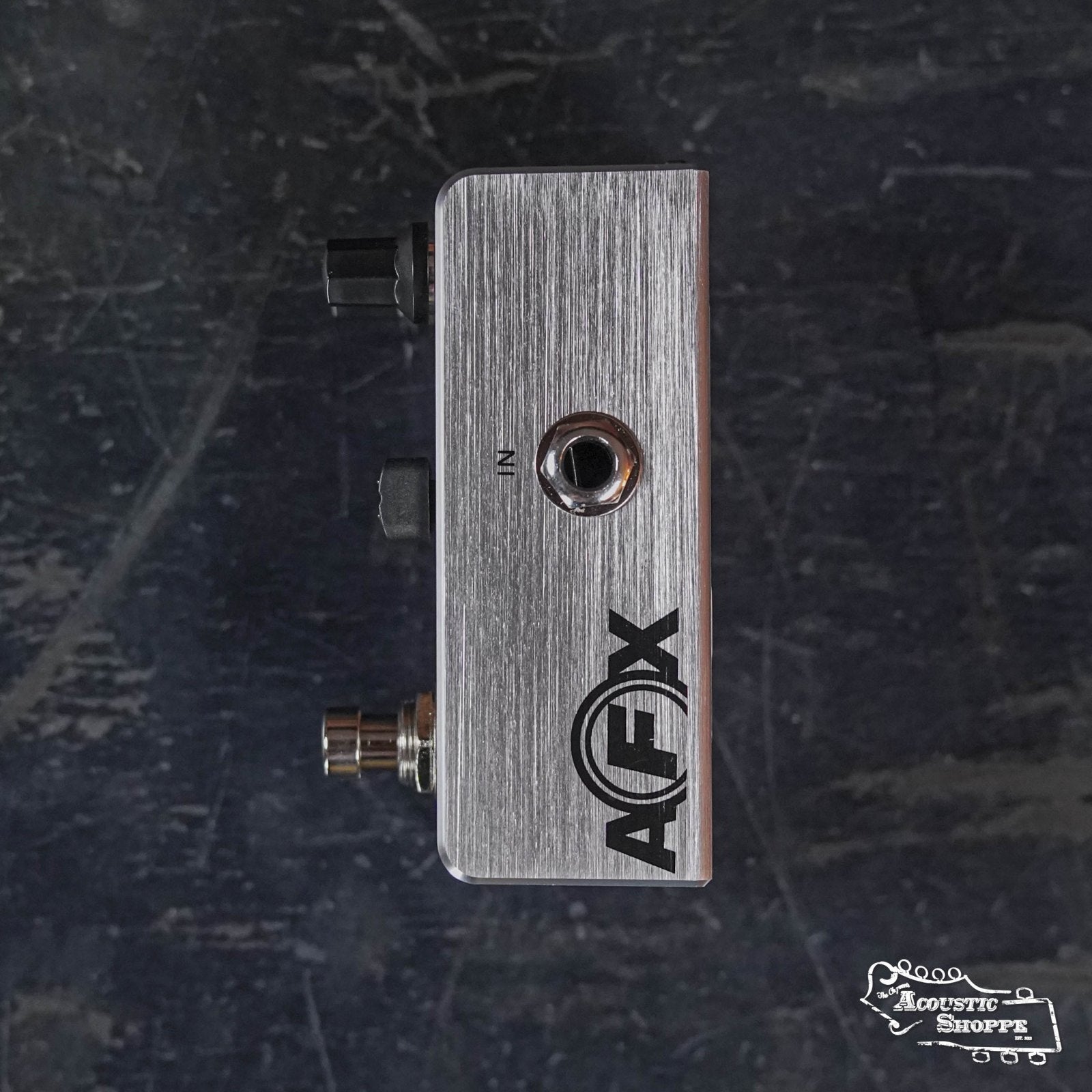

Side view of a metallic Fishman AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2 pedal, showing input/output jacks, on a dark scratched surface. The Acoustic Shoppe logo is in the bottom right corner.

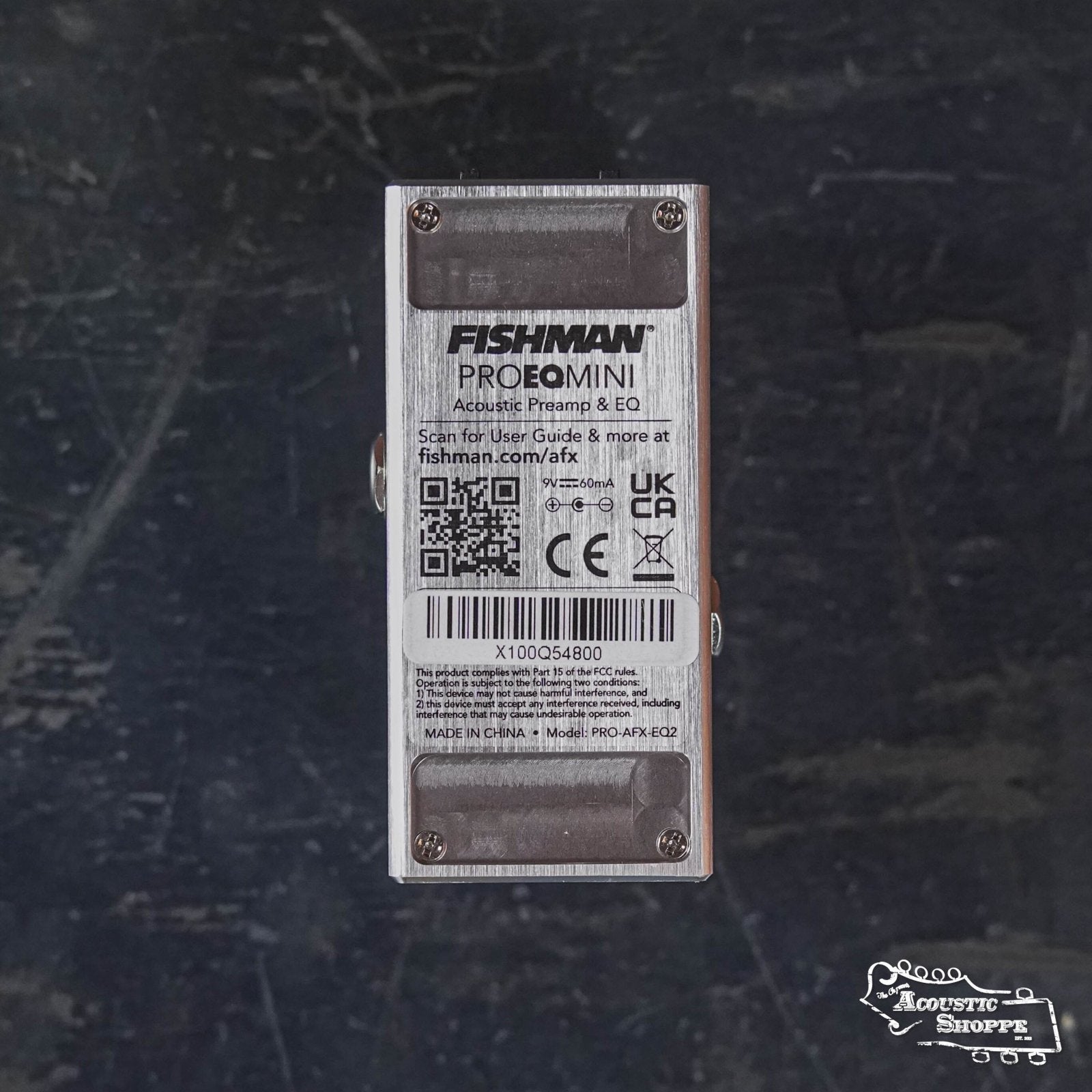

Rectangular Fishman AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2 pedal shown from the back with product label, barcode, QR code, and certification logos—an essential preamp for acoustic players—on a dark textured surface.

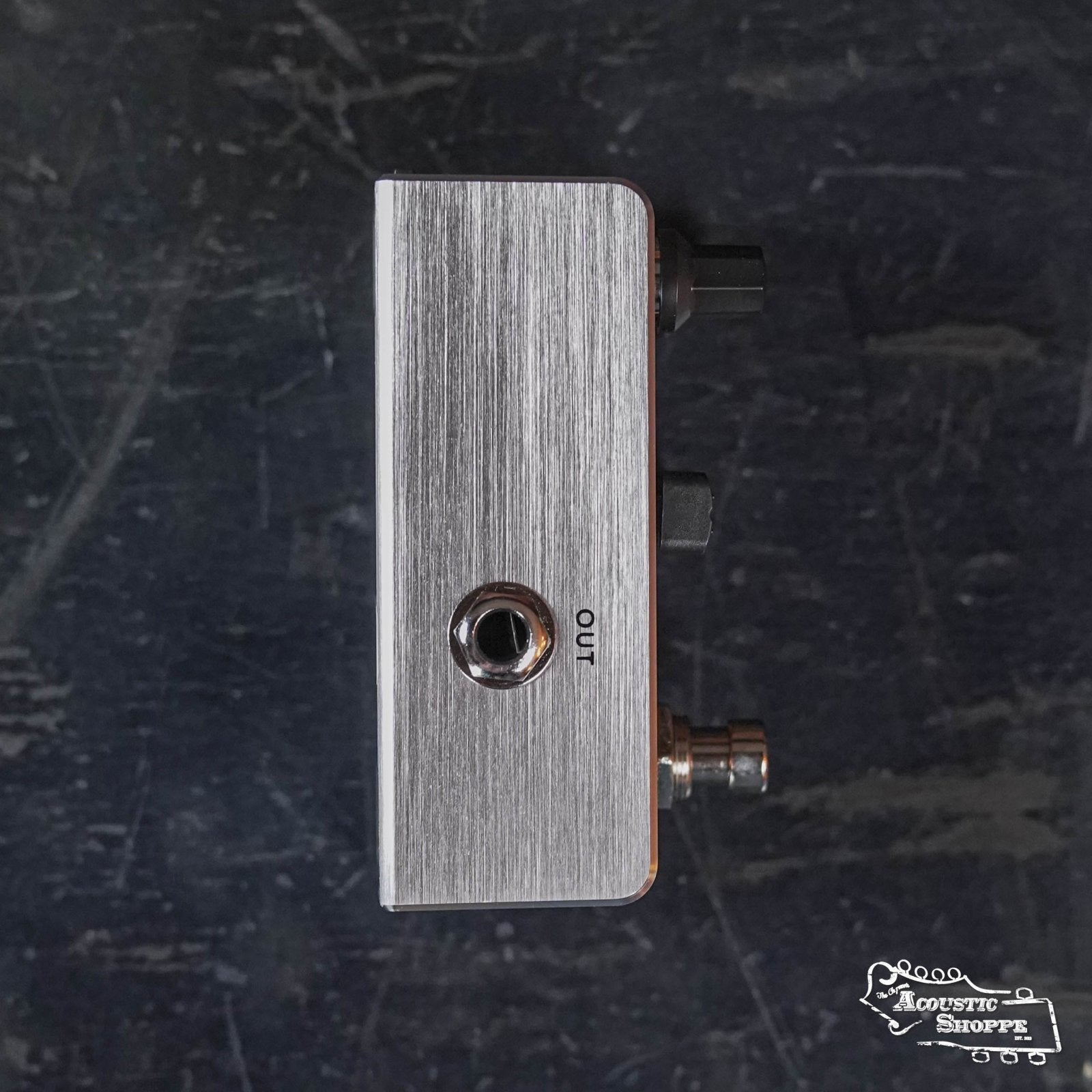

The Fishman AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2 is a brushed metal pedal with two black knobs, an OUT jack, and sits on a dark textured surface bearing the Acoustic Shoppe logo in the bottom right corner.

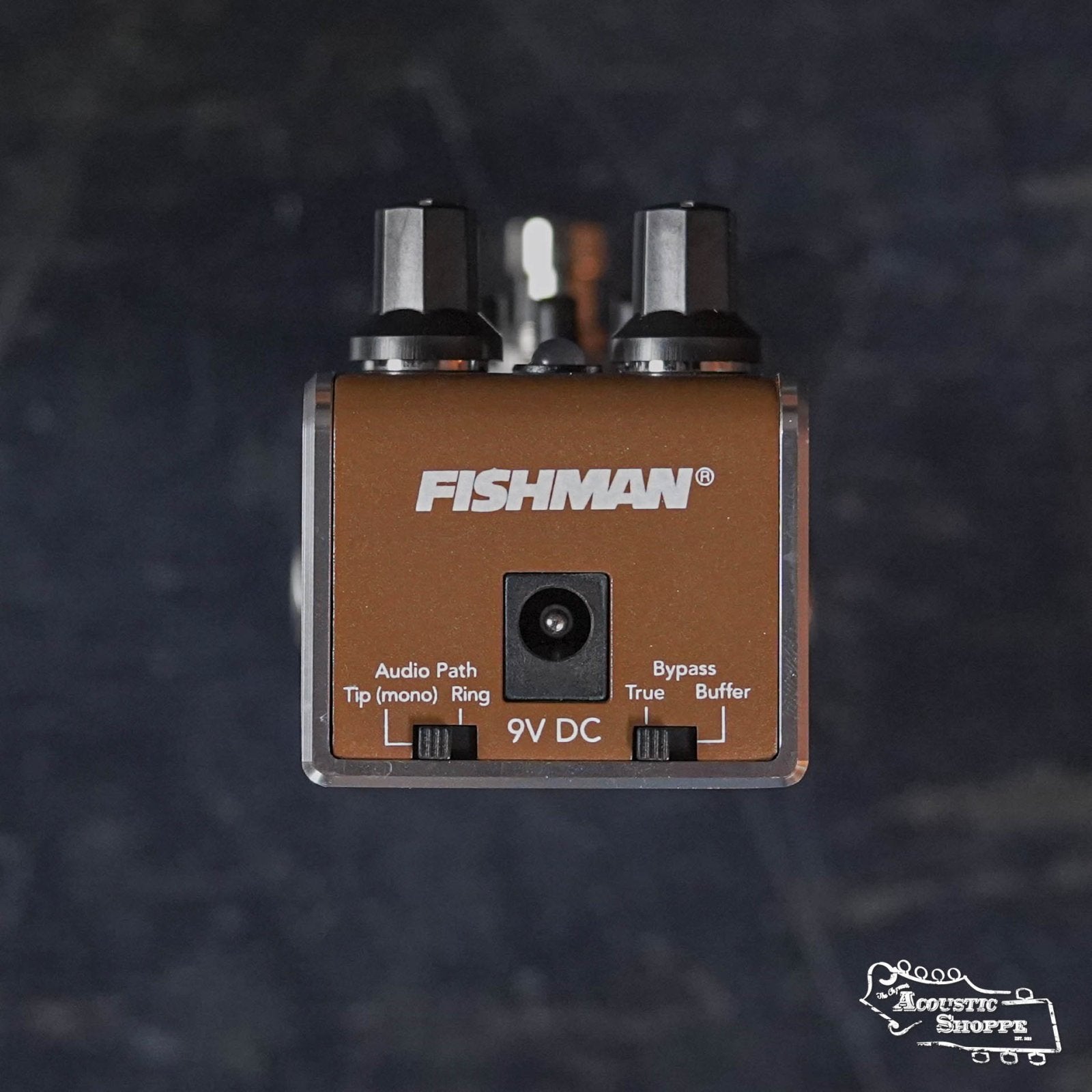

Close-up of the Fishman AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2 showing two control knobs, labeled input/output jacks, 9V DC power input, and bypass switch. An Acoustic Shoppe logo appears in the lower corner against a dark background.

AFX Pro EQ Mini Acoustic Preamp & EQ PRO-AFX-EQ2

Sale price$129.95

Most items ship within 24 hours. Any exception is noted on the listing.
14-day return policy Not what you needed? Return it within 14 days in original condition.
View full return policy →

Questions about this instrument?

(417) 720-1223Message us

Every one of us plays. Virtual demos available on request.

Description

AFX PRO EQ MINI ACOUSTIC PREAMP & EQ ACOUSTIC GUITAR PEDAL

  • 5-Band EQ Specially Voiced for Acoustic Instruments

  • True Bypass with Options for Buffered Bypass or Mute

  • Feedback-Fighting Phase Control

  • Innovative Dual Path Routing

  • Super Compact Design Fits Almost Anywhere

  • 9V External Power Required (sold separately)


SPECS
AUDIO I/O: 1/4" TRS input and output (TRS enables Dual Path Functionality)
DSP: 32-bit processing
BYPASS: True Bypass with Buffered Bypass Option
DIMENSIONS: 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
MATERIAL: Durable aluminum enclosure
CURRENT DRAW: 53mA, typical
POWER: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
ANALOG SIGNAL PATH: Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB
DIGITAL SIGNAL PATH: A/D, D/A conversion: 24-bit | Signal processing: 32-bit

Specifications
